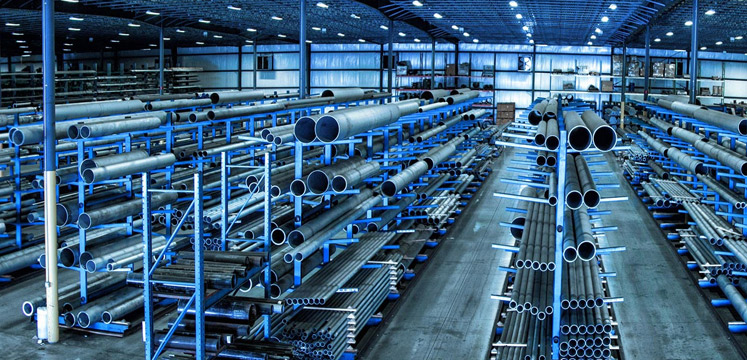

Stainless Steel Pipe and Tube
SS Pipe Testing & Value Added Processing Services from Trishala Stainless
Stainless Steel Pipe Polishing
Heat Treatment, Annealing
Ultrasonic Testing
Tube Processing
SS Pipe Beveling
Destructive Testing
Specification Of SS Pipe
| Specifications | Stainless Steel Pipe |
| Types | SS Seamless Pipes, ERW Seamless Pipes, Welded Seamless Pipes, Fabricated Seamless Pipes, LSAW Seamless Pipes, Box Seamless Pipes. |
| Standard | JIS, AISI, ASME, ASTM, AMS, GB, DIN, EN, GOST. |
| Seamless Pipes Size | ½” to 6” NB Sch 10s, 40s, & 80s, 160s |
| Wall Thickness | 0.1 - 60 mm |
| Stainless Steel | TP-304, 304L, 304H, 304N, 304LN 316, 316L, 316H, 316Ti, 316N, 316LN, 310, 317, 317L, 321, 321H, 347, 347H TP-304, 304L, 304H, 304N, 304LN 316, 316L, 316H, 316Ti, 316N, 316LN, 310, 317, 317L, 321, 321H, 347, 347H. |
| Size OD (mm) | 6.00 to 610.00 |
| Length (mm) | 6000, 3000, 2000, 12000, Custom Length |
| Finish | Annealed & Pickled, 2B, No.4, Mirror, Polish |
| Packing | Bundled Packing |
| Services | Cutting, Beveling, Threading, Polishing |

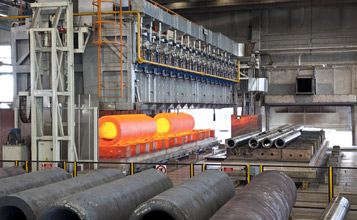

Features Of Stainless Steel Tube
Magnetic Response
Environmentally friendly
High tensile strength
High as well as Low-Temperature Service
Light weight

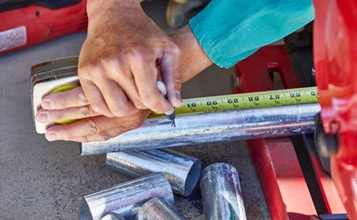

Markings on SS Pipe and Tube
Nominal Pipe Size (Nominal Bore)
Specification
Schedule (Wall Thickness)
Grade
Method of Manufacture (Seamless or Welded)
Heat Number
Chemical Composition Of SS Seamless Pipe
| Type | C | Mn | P | S | Si | Cr | Ni | Mo |
| 302 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00/19.00 | 8.00/10.00 | - |
| 304* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/10.50 | - |
| 304L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00/20.00 | 8.00/12.00 | - |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00/24.00 | 12.00/15.00 | - |
| 309S | 0.08 | 2.00 | 0.045 | - | 1.00 | 22.00/24.00 | - | - |
| 310 | 0.25 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | - |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.5 | 24.00/26.00 | 19.00/22.00 | - |
| 316* | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 316L* | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00/18.00 | 10.00/14.00 | 2.00/3.00 |
| 317 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00/1.00 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 317L | 0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00/20.00 | 11.00/15.00 | 3.00/4.00 |
| 321 | 0.08 | 2.00 | 0.040 | 0.030 | 1.00 | 17.00/19.00 | 9.00/12.00 | 0.75/0.75 |
| 347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.5/1.00 | 17.00/19.00 | 9.00/12.00 | 0.5/0.75 |
| 410* | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.5 / 13.5 | - | - |
| 410S | 0.08 | 0.30/0.65 | 0.030 | 0.010 | 0.15/0.50 | 12.00 / 12.60 | 0.20/0.55 | 0.20/0.55 |
| 416 | 0.15 | 1.25 | 0.060 | 0.15 min | 1.00 | 12.00 / 14.00 | - | - |
| 420 | 0.15 min | 1.00 | 0.040 | 0.030 | 1.00 | 12.00 / 14.00 | - | - |
| 430 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 16.00 / 18.00 | - | - |
| 440C | 0.95/1.20 | 1.00 | 0.040 | 0.030 | 1.00 | 16.00 / 18.00 | - | 0.75 |
Stainless Steel Welded Pipe Mechanical Property
| Type | UNS | Tensile (ksi) min |
Yield (ksi) min |
Elongation min |
Hardness (Brinell) max |
Hardness (Rockwell B) max |
| 302 | S30200 | 75 | 30 | 40% in 2" | 183 | 88 |
| 304* | S30400 | 75 | 30 | 40% in 2" | 183 | 88 |
| 304L* | S30403 | 70 | 30 | 40% in 2" | 183 | 88 |
| 309 | S30900 | 75 | 30 | 40% in 2" | 217 | 95 |
| 309S | S30908 | 75 | 30 | 40% in 2" | 217 | 95 |
| 310 | S31000 | 75 | 30 | 40% in 2" | 217 | 95 |
| 310S | S31008 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316* | S31600 | 75 | 30 | 40% in 2" | 217 | 95 |
| 316L* | S31603 | 70 | 25 | 35% in 2" | 217 | 95 |
| 317 | S31700 | 75 | 30 | 35% in 2" | 217 | 95 |
| 317L | S31703 | 75 | 30 | 35% in 2" | 217 | 95 |
| 321 | S32100 | 75 | 30 | 40% in 2" | 183 | 88 |
| 347 | S34700 | 75 | 30 | 40% in 2" | 183 | 88 |
| 410* | S41000 | 65 | 30 | 20% in 2" | 217 | 95 |
| 410S | S41008 | 60 | 30 | 22% in 2" | 183 | 88 |
| 416 | S41600 | 75 | 40 | 30-25% in 2" | - | 82 |
| 420 | S42000 | 95 | 60 | 30-25% in 2" | - | 92 |
| 430 | S43000 | 65 | 30 | 22% in 2" | 183 | 88 |
| 440C | S44004 | - | - | - | - | - |
